FRD Sensor FD80B Intelligent Universal Pressure Transmitter: High-Precision Industrial Measurement Solutions

Supply Ability : Production output can be flexibly adjusted according to order quantity.

Operating Temperature : -20℃~70℃

Model Number : FD80B

Accuracy : 0.1%F.S, 0.25%F.S, 0.5%F.S (optional)

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Long-term Stability : 0.2%F.S/year

Price : USD 30-200/piece

Communication Protocols : MODBUS RTU Protocol, HART Protocol

Certification : IP65

Pressure Type : Gauge Pressure

MOQ : one piece

Delivery Time : 5-8 work days

Output Signal : 4mA~20mA DC, 1V~5V DC, RS485, etc. (optional)

Electrical Connection : M20*1.5(F) standard, custom options available

Brand Name : FRD

Range : 0-5kPa~260MPa

Place of Origin : China

Power Supply : 10V~30V DC (24V DC recommended)

Packaging Details : Carton Package/Wooden Crate Package

Protection Rating : IP65

Contact Now

1. Introduction

The FRD Sensor FD80B Intelligent Universal Pressure Transmitter is engineered for high-precision and high-stability industrial pressure measurement. By integrating advanced piezoresistive sensing technology with digital temperature compensation and nonlinear correction, it delivers reliable performance across gauge, absolute, and negative pressure applications.

2. Why Choose This Model?

Industrial operators frequently encounter customer pain points such as signal drift from ambient temperature shifts, difficult calibration processes in hazardous zones, and poor environmental protection leading to premature hardware failure. The FD80B overcomes these challenges through:
- Precise Digital Compensation: Eliminates errors caused by thermal fluctuations.
- On-Site Key Reset: Simplifies maintenance with convenient external button zeroing.
- Robust Protection: IP65 design with explosion-proof certification (Exd/Exia) for harsh outdoor environments.

3. Products Parameters

Range	0-5kPa~260MPa
Accuracy	0.1%F.S, 0.25%F.S, 0.5%F.S (optional)
Pressure Type	Gauge Pressure
Power Supply	10V~30V DC (24V DC recommended)
Output Signal	4mA~20mA DC, 1V~5V DC, RS485, etc. (optional)
Communication Protocols	MODBUS RTU Protocol, HART Protocol
Long-term Stability	0.2%F.S/year
Operating Temperature	-20℃~70℃
Electrical Connection	M20*1.5(F) standard, custom options available
Protection Rating	IP65
Warranty Period	12 months

4. FRD Sensor FD80B OEM & ODM Customization Services

We offer comprehensive customization capabilities for the FD80B model to match unique project requirements:

Pressure Range Calibration: Tailored spans from 0-5kPa up to 260MPa.
OEM Branding: Customized laser-marked nameplates, enclosures, and private labeling.
ODM Protocol Integration: Special electrical connections or customized communication output configurations.

5. FRD Sensor FD80B Differential Pressure Transmitter Measurement Accuracy Troubleshooting Guide

If accuracy anomalies occur, follow these inspection procedures:

Verify Power Supply: Confirm input voltage is stable within 10V–30V DC (recommended 24V DC).
Perform Zero Reset: Use the digital on-site button key to clear zero offsets under no-load conditions.
Check Signal Interference: Ensure shielding is properly grounded to prevent electromagnetic disruptions on 4-20mA or RS485 lines.
Inspect Process Port: Clear any blockage or sediment buildup in the pressure inlet to ensure smooth media contact.

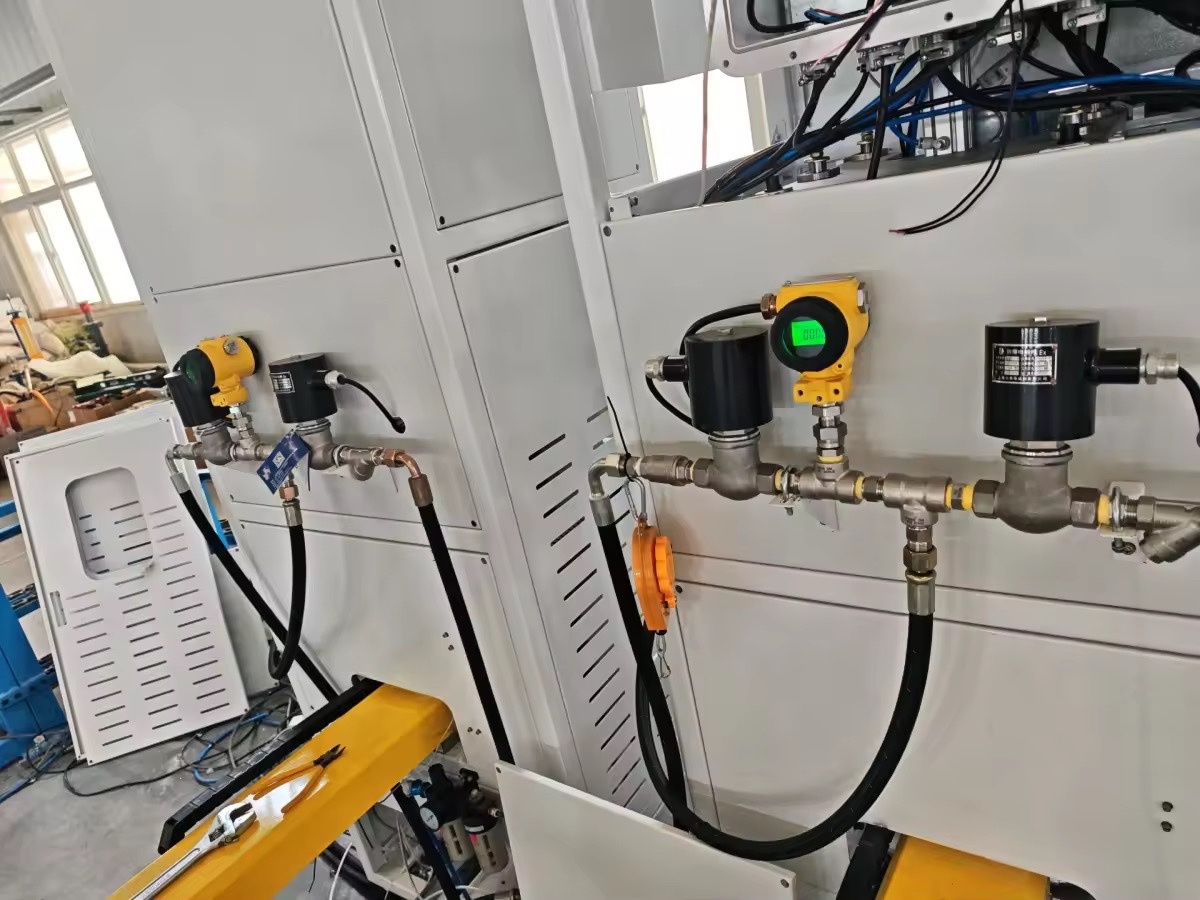

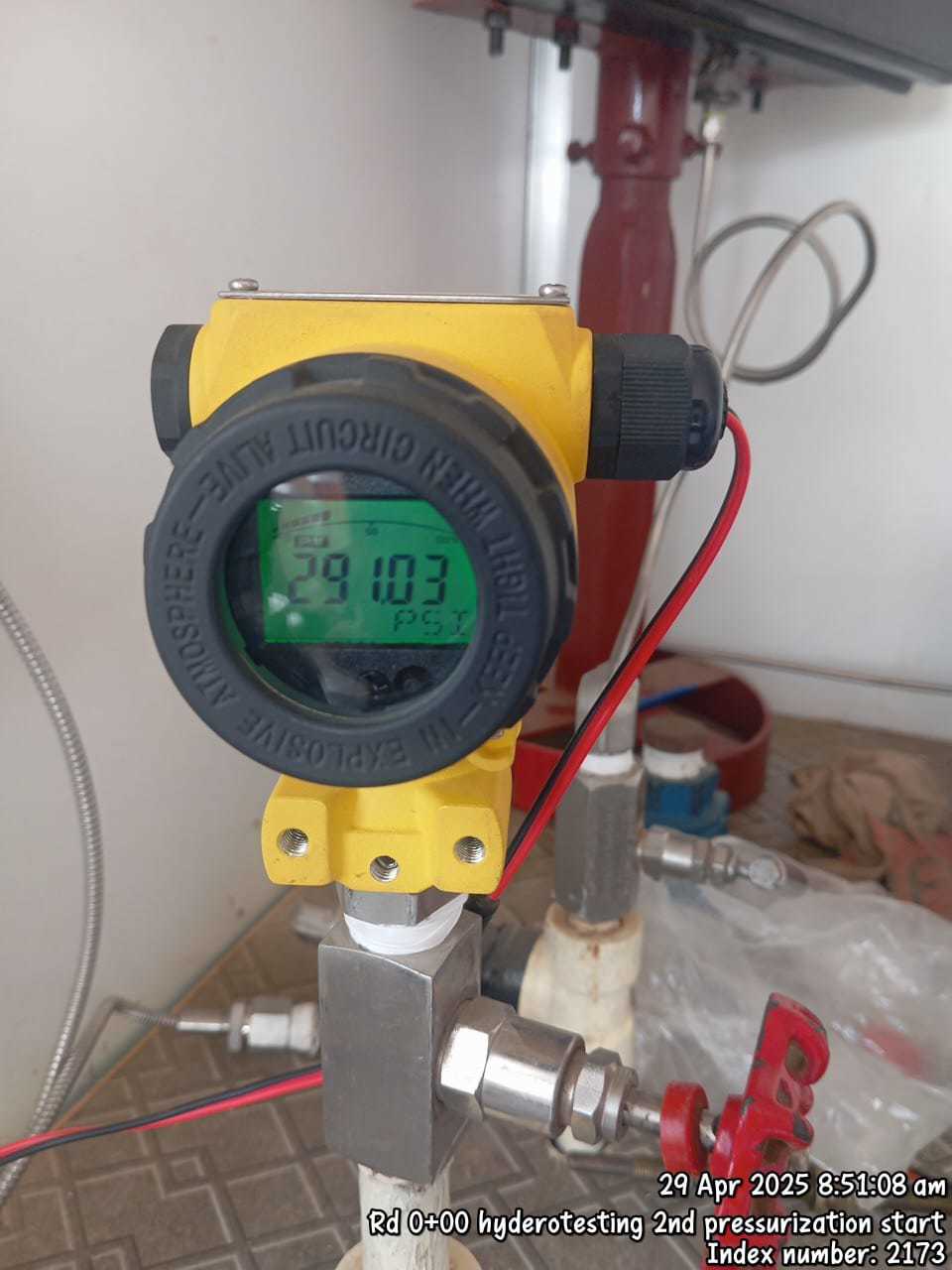

6. Application Scenarios

FRD Sensor FD80B Intelligent Universal Pressure Transmitter: High-Precision Industrial Measurement Solutions

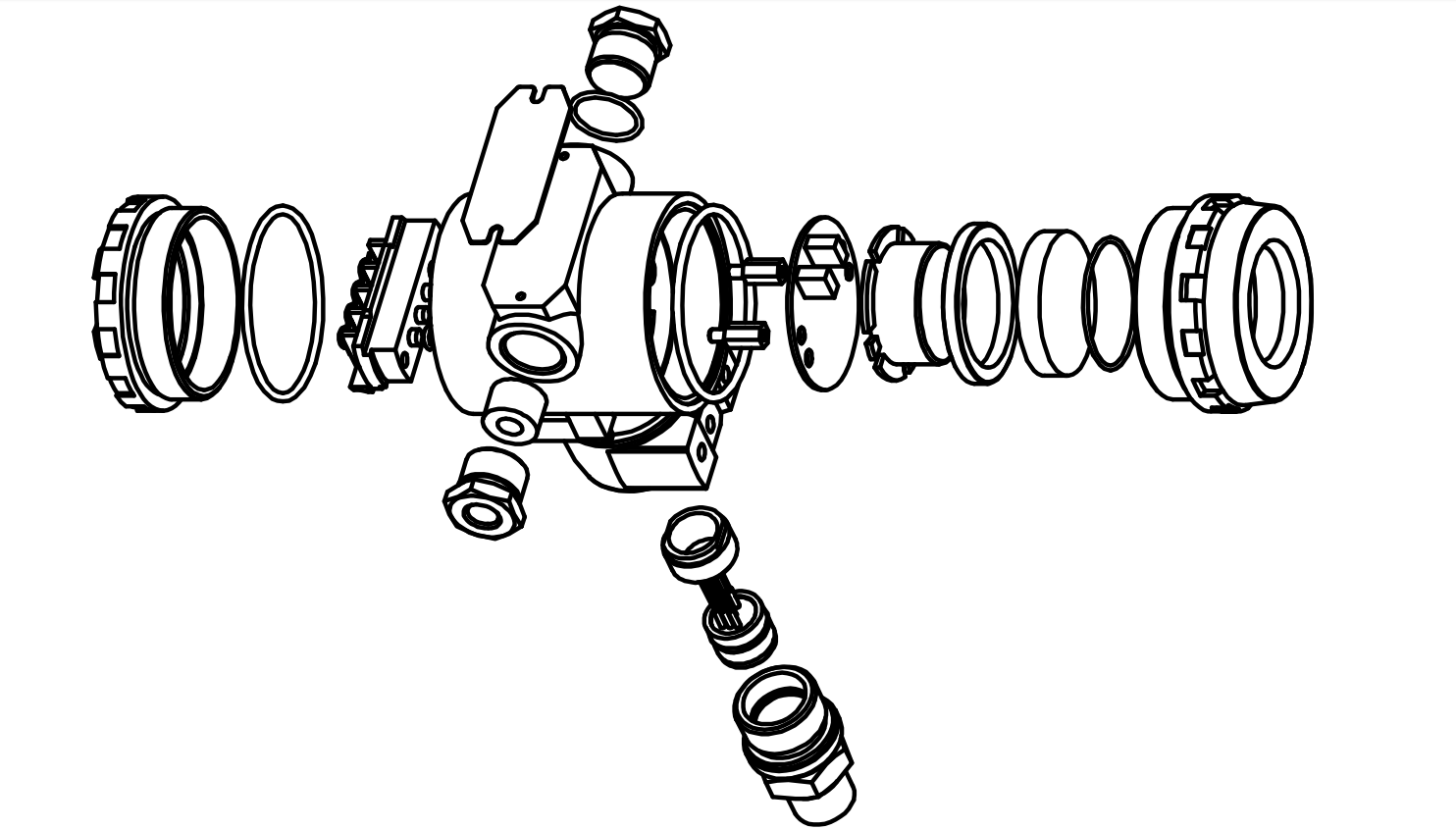

7. Product Drawing

8. Product Certifications

9. Conclusion

The FRD Sensor FD80B Intelligent Universal Pressure Transmitter stands out as a versatile, highly accurate solution built for demanding industrial landscapes. By combining resilient explosion-proof construction, smart digital compensation, and flexible OEM/ODM options, it guarantees long-term measurement reliability and optimized operational efficiency.
